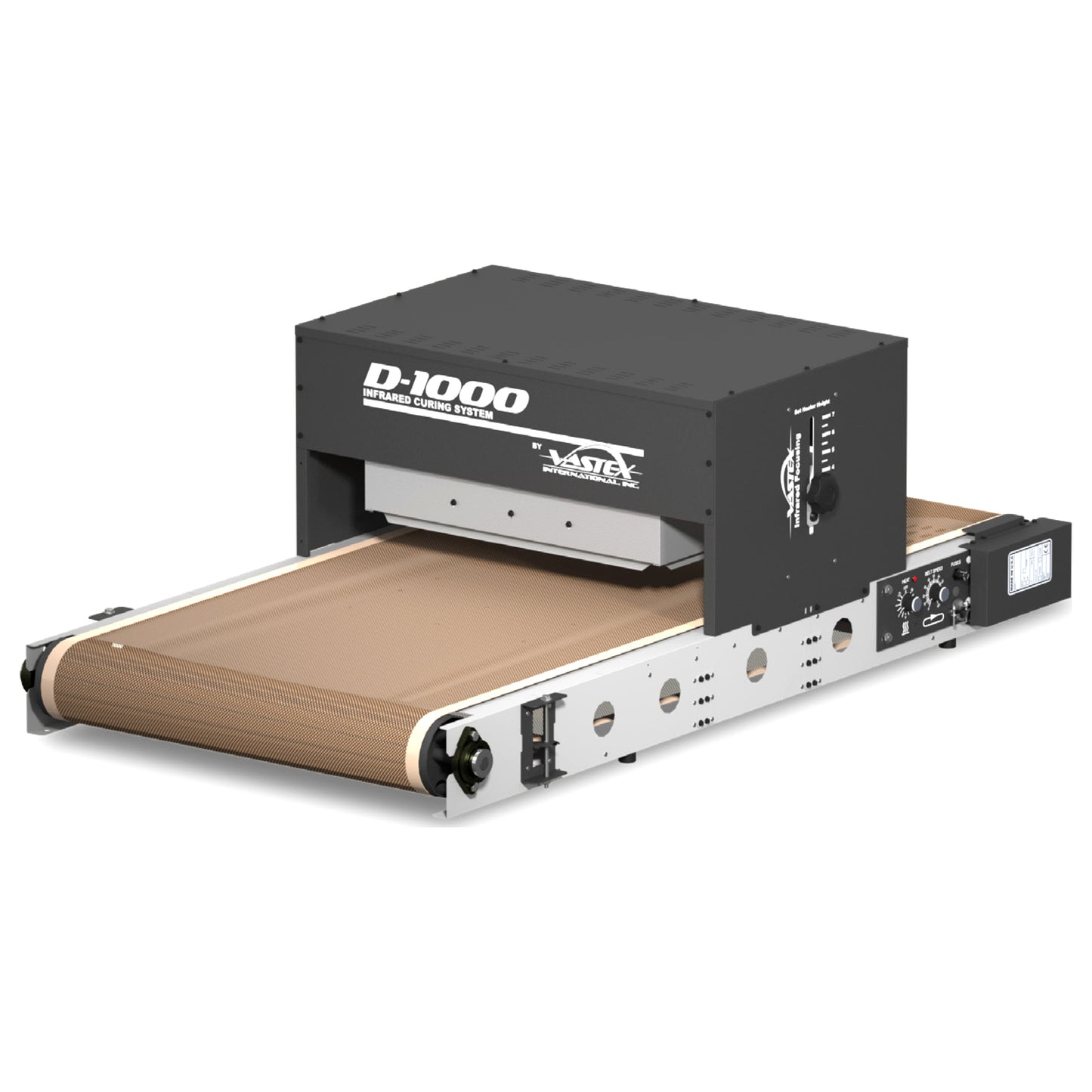

Vastex D-1000 26" Wide Conveyor Dryer

The Vastex D-1000 is a fantastic entry-level table top conveyor dryer. With a 26 in. (66 cm) wide by 56 in. (1.43 m) long conveyor belt, the D-1000 Compact Infrared Conveyor is sized to accommodate wider jackets and sweats, and wider printed images, than a Vastex sub-compact D-100 Conveyor Dryer with 18 in. (46 cm) wide belt.

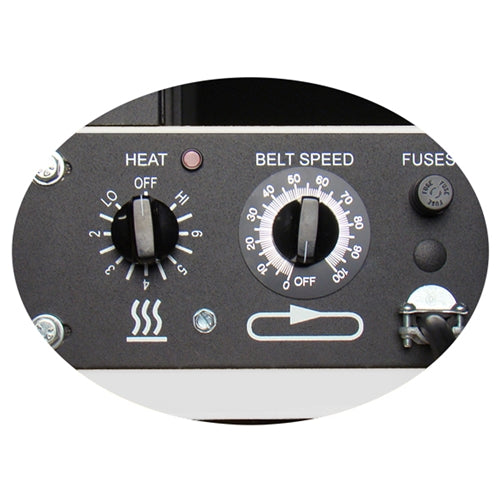

Variable controls for both heat intensity and conveyor speed allow fine-tuning of the drying process according to ink type, ink coverage, desired cure temperature, and rate at which items are being printed.

The heater can be raised, lowered and pivoted using lock knobs on the sides of the heating chamber according to the thickness of printed garments and/or the angle of printed images on irregularly shaped items, for uniform curing of the printed area using minimum energy. Heater shields are included as standard to maximize edge-to-edge temperature consistency for increased image quality.

This compact conveyor dryer is CE certified and shippable via UPS.

Features

• SMART - Teflon coated fiberglass belt with tracking system
• BELT WIDTH - (max garment width)
  26" (46 cm)
• HEATER WIDTH - 20" (41 cm)
• ADJUSTABLE - Speed, temperature, heater height and tilt
• FAST - 110+* shirts per hour with plastisol and 50+* with discharge
• PRECISE - Powerful infrared heater with tight coil pattern and heat shields
• VALUABLE - Best warranty, high quality, exceptional service
• COMPACT - Total footprint is less than 10 sq.ft (3 sq.m)

Plug Reference

• 2,050 Watt, 120V, 16.5A
• 2,050 Watt, 240V, 8.2A

This conveyor dryer uses a NEMA 5-20P or NEMA 6-15P plug depending on the power option selected. Please refer to the image below for reference.

120V Plug:

240V Plug:
