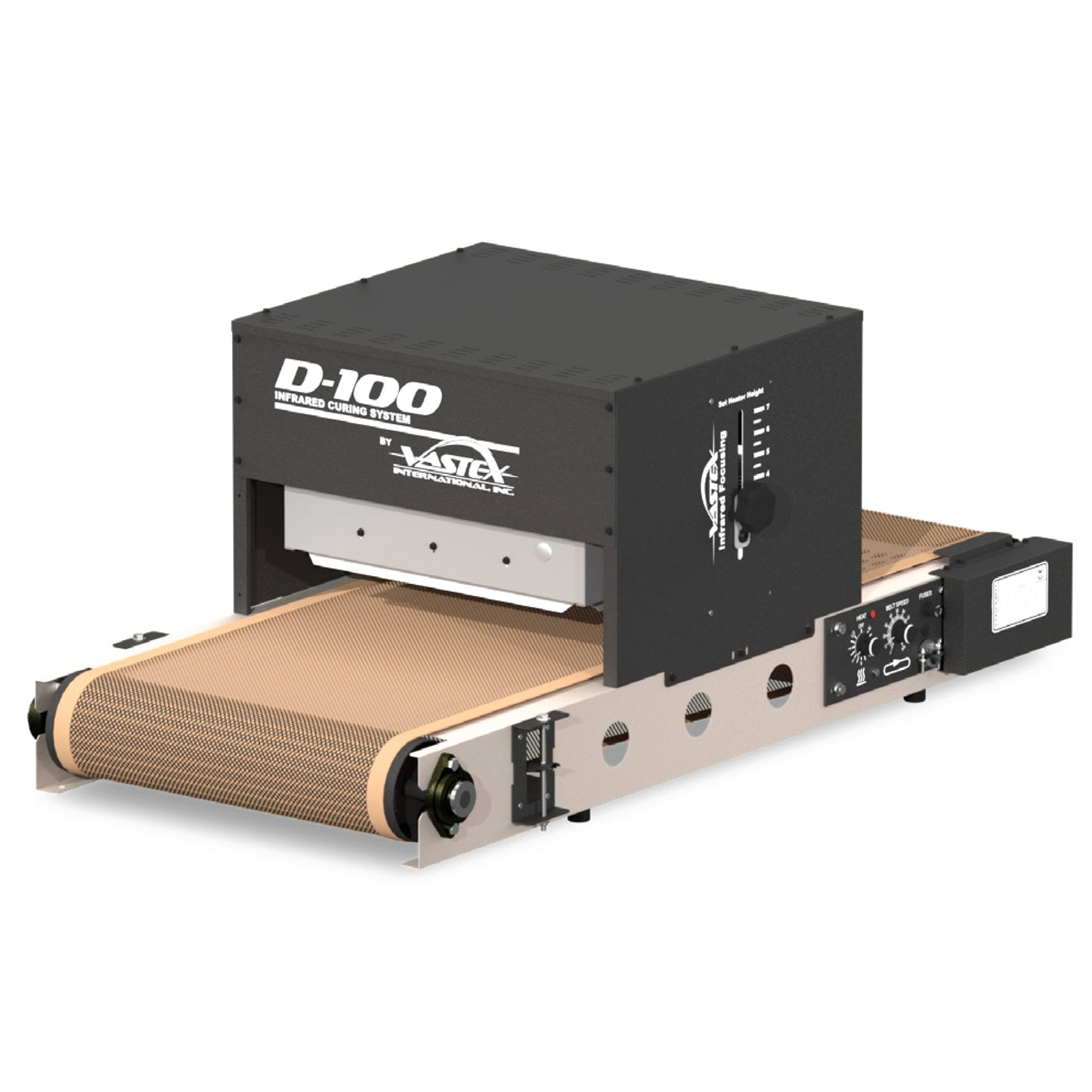

Vastex D-100 18" Wide Conveyor Dryer

The Vastex D-100 is a fantastic entry-level table top conveyor dryer. It comes complete with an 18" (45.7 cm) wide conveyor belt, and cures up to 110 plastisol-printed garments or 50 waterbase/discharge-printed garments per hour.

Adjustable heater height/angle, heat intensity and belt speed provide full operator control. Dense coil pattern, heater shields and a 6.35 watt per sq-in infrared heater eliminate hot and cold spots and provide the power you need to get the job done. The D-100 comes in 120V or 240V models.

This compact conveyor dryer is CE certified and shippable via UPS.

Features

• SMART - Teflon coated fiberglass belt with tracking system
• BELT WIDTH - (max garment width)
  18" (46 cm)
• HEATER WIDTH - 16" (41 cm)
• ADJUSTABLE - Speed, temperature, heater height and tilt
• FAST - 110+* shirts per hour with plastisol and 50+* with discharge
• PRECISE - Powerful infrared heater with tight coil pattern and heat shields
• VALUABLE - Best warranty, high quality, exceptional service
• COMPACT - Total footprint is less than 8 sq.ft (2.44 sq.m)

Plug Reference

Power Options

• 1,625 Watt, 120V, 12.5A
• 1,625 Watt, 240V, 6.5A

This flash dryer uses a NEMA 5-15P or NEMA 6-15P plug depending on the power option selected. Please refer to the images below for reference.

120V Plug:

240V Plug:

Product Downloads
