Vastex EconoRed VI Conveyor Dryer

EconoRed VI dryers are offered in 30, 54 and 78 in. (76, 137 and 198 cm) belt widths to cure standard as well as oversized garments or flat goods screen-printed with plastisol, water-based inks or discharge, as well as DTF adhesives. Fully expandable, these dryers can grow as your needs grow.

Model ER-VI-30, with 30 in. (76 cm) wide belt and six 24 in. (61 cm) wide heaters (total 15,600 watts) cures up to 900 plastisol-printed garments/h placed in a single row, or 300 garments/h screen-printed with water-based ink or discharge.

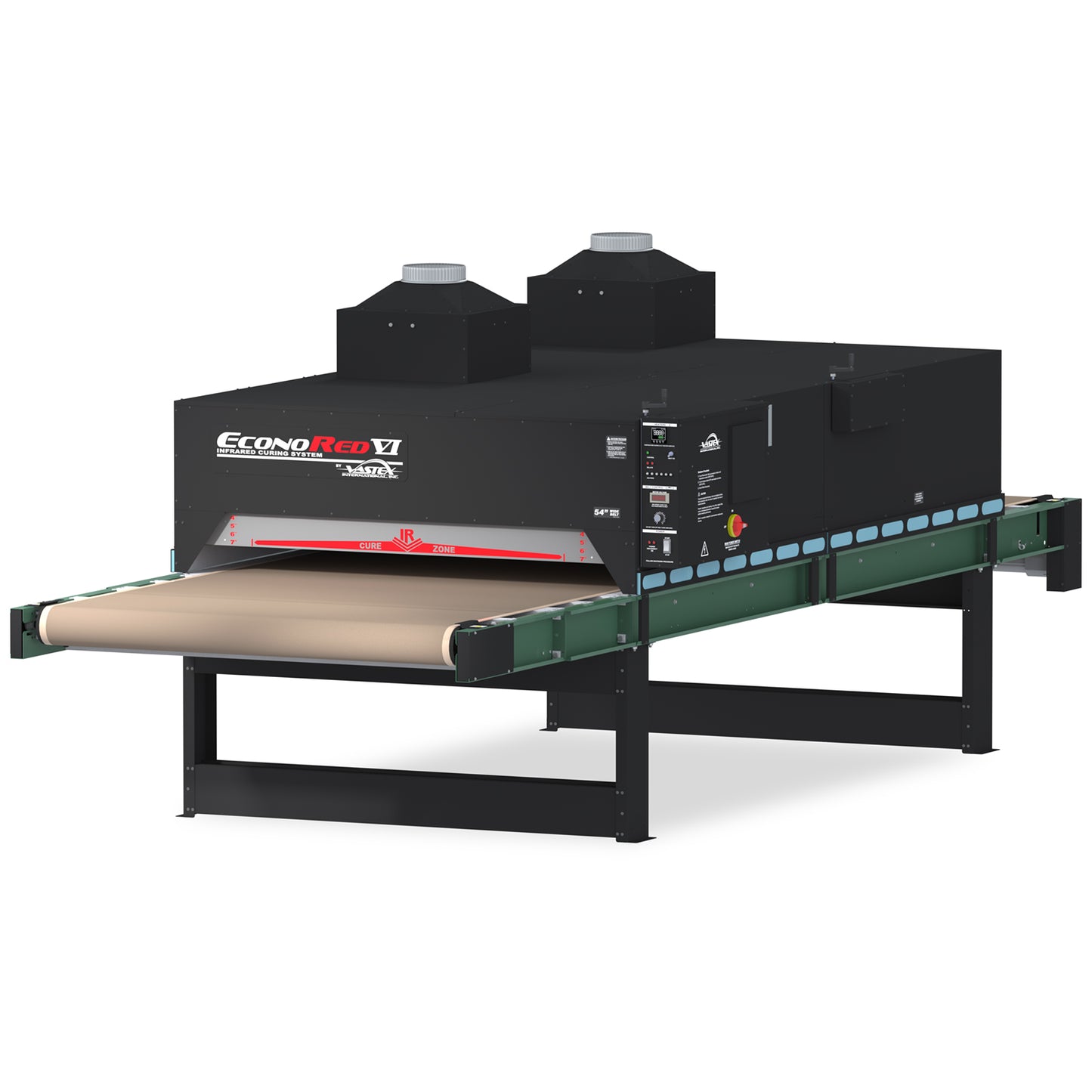

Model ER-VI-54, with 54 in. (137 cm) wide belt and six 48 in. (122 cm) heaters (total 31,200 watts) cures up to 1,800 plastisol-printed garments/h placed in two rows, or 600 garments/h screen-printed with water-based ink or discharge.

Model ER-VI-78, with 78 in. (198 cm) wide belt and six 72 in. (183 cm) heaters (total 46,800 watts) cures up to 2,700 plastisol-printed garments/h placed in three rows, or 900 garments/h screen-printed with water-based ink or discharge.

As with all Vastex conveyor dryers, capacity can be doubled, tripled or quadrupled by adding one, two or three modular heating chambers and conveyor belt extensions — as new or when needs grow.

The focused exhaust system evacuates moisture and fumes from the heating chamber and provides excellent air flow to cool the outer skin of the dryer.

All heaters feature closely spaced coils that provide high-density, medium-wavelength infrared heat for maximum cure speed without cold spots or under-curing, and come with a 15-year warranty.

The Vastex Infrared Focusing System allows heater adjustment to any height from 2 to 7 in. (5.1 to 17.8 cm) above the belt, allowing the operator to compensate for bulky garments or hats.

All models include a digital belt speed display and a belt tracking system for increased belt life. The digital PID temperature controller is accurate to +/- 1°F (+/-0.5°C), allowing the operator to fine-tune or accurately repeat drying results at any future time.
